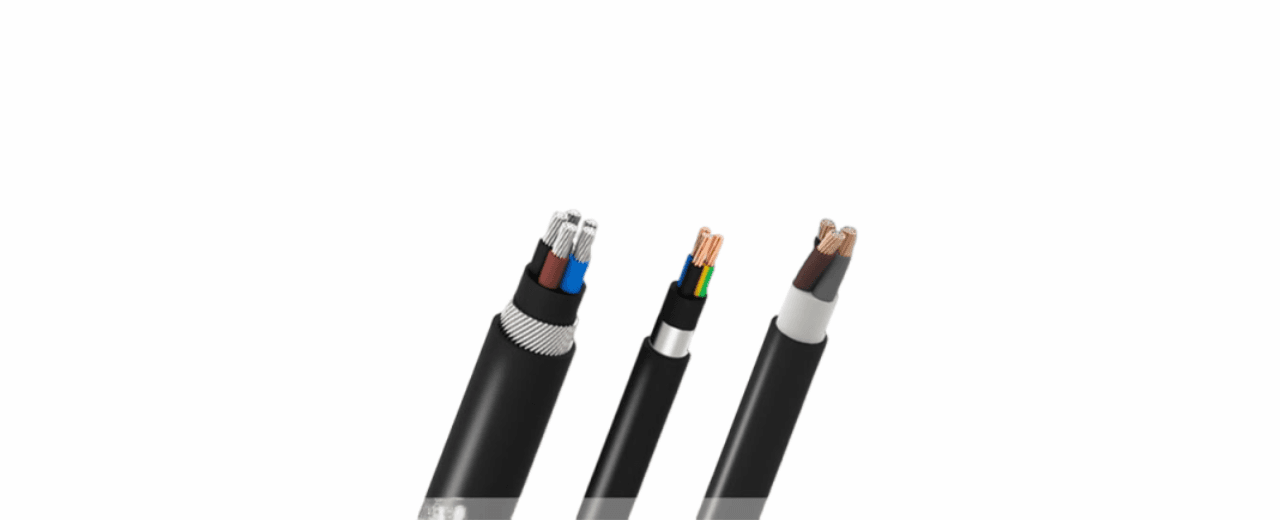

XLPE Power Cables
Perfect Electrical Solution for Modern Use
XLPE Power Cables are known as cross linked polyethylene power cables which are used in modern electrical systems. These cables are designed for power transmission and distribution due to outstanding insulation properties, resistance to moisture, and high durability. These XLPE power cable properties make them a perfect solution for underground, overhead, and industrial applications. Additionally, these power cables have various voltage ranges from low to extra-high voltage that ensure safe energy transmission in various industries like utilities, renewable energy, and heavy industries.
XLPE Power Cables Specifications
The XLPE Power Cables are used in underground, overhead, and industrial applications due to their high thermal resistance, excellent electrical properties, and superior mechanical strength ensuring reliability and safety in power distribution networks. For the Conductors the material used is copper and aluminum with solid or stranded construction while keeping IEC 60228 / IS 8130 standards. While in the Insulation the material used is Cross-Linked Polyethylene (XLPE) with the operating temperature continuous up to 90°C and short circuit up to 250°C (for 5 seconds). Even the dielectric strength is high insulation resistance.
The core configuration of XLPE power cables includes Single Core and Multi-Core (2, 3, 3.5, 4 Core).The Metallic Screen (For Medium and High Voltage Cables) are made of Copper Tape or Copper Wires materials by providing grounding and protects against electromagnetic interference (EMI). The Inner Sheath material used is PVC, LSZH (Low Smoke Zero Halogen), or FR (Flame Retardant) to provide protection against moisture and mechanical stress.
The Armoring for Armored Cables material used is Galvanized Steel Wire (For Multi-Core) / Aluminum Wire (For Single-Core) to enhance the mechanical protection. The Outer Sheath material is PVC, HDPE, LSZH and they are available in Black, Red, or as per requirement colors and also Flame Retardancy is available as per the requirement. The voltage ratings are Low Voltage (LV): 1.1 kV, Medium Voltage (MV): 3.3 kV – 33 kV, High Voltage (HV): 66 kV – 220 kV and Extra High Voltage (EHV): 220 kV – 400 kV. The standards and certifications XLPE Power Cables have IEC 60502 (LV & MV Cables), IS 7098 (Indian Standard), BS 5467 (British Standard), IEEE 383 (Flame Retardancy) and ASTM & ISO Compliant.
XLPE Power Cables Category
XLPE Power Cables are available based on voltage ratings, conductor type, and application. Main categories are mentioned below:
Based on Voltage Rating
Voltage
1. Low Voltage (LV) XLPE Cables (Up to 1.1 kV)
2. Medium Voltage (MV) XLPE Cables (3.3 kV – 33 kV)
3. High Voltage (HV) XLPE Cables (66 kV – 220 kV)
4. Extra High Voltage (EHV) XLPE Cables (220 kV – 400 kV)
Usage
1. These cables are used for household wiring, industrial connections, and low-voltage power distribution.
2. These cables are suitable for industrial plants, underground distribution, and substation applications.
3. These cables are used for power transmission over long distances and in grid networks
4. These cables are ideal for national power grids and large-scale industrial transmission.
Based on Core Configuration
Core Configuration
1. Single-Core XLPE Cable
2. Multi-Core XLPE Cable (2, 3, 3.5, 4 Core)
Usage
1. These cables are used for high-voltage applications and industrial setups.
2. These cables are used in power distribution, control systems, and industrial machinery.
Based on Armoring
Armoring
1. Unarmored XLPE Cables
2. Armored XLPE Cables
Usage
1. These cables are used where mechanical protection is not required.
2.These cables are equipped with galvanized steel wire or aluminum wire armor for enhanced mechanical protection in harsh environments.
Based on Sheathing Material
Sheathing Material
1. PVC-Sheathed XLPE Cables
2. HDPE-Sheathed XLPE Cables
3. LSZH (Low Smoke Zero Halogen) XLPE Cables
Usage
1. These cables are standard protection for general electrical applications.
2.These cables provide better chemical resistance and durability.
3.These cables are used in buildings, tunnels, and public spaces for fire safety.
Based on Application
Application
1. Underground XLPE Power Cables
2. Overhead XLPE Power Cables
3. Industrial XLPE Power Cables
4. Renewable Energy XLPE Cables
Usage
1. These cables are used for urban power distribution and substation connections.
2.These cables are designed for aerial installations with better insulation.
3.These cables are used in manufacturing plants, refineries, and heavy industries.
4.These cables are specially designed for solar and wind power applications.
Benefits of Choosing XLPE Power Cables :-
XLPE power cables have various pros than conventional PVC-insulated cables that make these cables an ideal choice for modern power transmission and distribution systems. Below are the key benefits why industries to choose XLPE power cables:
- XLPE cable insulation can withstand temperatures up to 90°C during normal operation and up to 250°C during short circuits which offer better heat dissipation and reduce the risk of overheating
- These XLPE cables have Low dielectric loss that ensure structured power transmission with High insulation resistance which minimize the leakage current and enhance safety.
- XLPE Cables have High tensile strength and flexibility which makes these cables resistant to mechanical stress and bending.
- XLPE cables have excellent resistance to water, chemicals, and corrosive substances which makes them suitable choices for underground and industrial applications and do not absorb moisture while ensuring long-term performance in humid environments.
- XLPE cable insulation allows cables to carry higher current loads than conventional PVC-insulated cables of the same size and reduces power losses and improves energy efficiency.
- XLPE cables are lighter and more flexible which makes them easier to transport and install and requires less space for laying, reducing installation costs.
- These XLPE cables are available in LSZH (Low Smoke Zero Halogen) variants, which emit minimal smoke and toxic gases during fire incidents and have high resistance to fire ensures better safety in residential, commercial, and industrial environments.
- These cables have a longer lifespan almost 30 years due to excellent durability and insulation properties with minimal maintenance required while reducing operational costs.
- These XLPE cables are free from harmful PVC plasticizers and halogens and have less impact on the environment due to its non-toxic composition.
XLPE Power Cables Application
XLPE power cables are used in various industries as they have high electrical performance, thermal resistance, mechanical strength, and durability. Below are the key applications of XLPE power cables.
- These XLPE power cables are used in low, medium, and high-voltage power transmission networks which are ideal for underground and overhead power distribution systems that are installed in power grids, substations, and transformer stations.
- These XLPE power cables are used in industries such as oil & gas, petrochemical, steel, cement, and manufacturing.
- These XLPE power cables are essential for solar farms, wind power plants, and hydroelectric stations that are used for power transmission from solar panels and wind turbines to substations which withstands UV exposure, temperature variations, and outdoor conditions.
- These XLPE power cables are essential for solar farms, wind power plants, and hydroelectric stations that are used for power transmission from solar panels and wind turbines to substations which withstands UV exposure, temperature variations, and outdoor conditions.
- These XLPE power cables are preferred for urban power distribution networks and installed in residential, commercial, and industrial areas for safe and reliable power supply and resistant to moisture, soil chemicals, and mechanical stress.
- These XLPE power cables are used in offshore oil rigs, ships, and marine installations that withstands saltwater, humidity, and extreme weather conditions that are available in waterproof and corrosion-resistant variants.
- These power cables are used for electrification of rail networks and metro stations as it supplies power to signaling systems, lighting, and control circuits. As these cables have Fire-resistant and flame-retardant options ensure passenger safety.
- These XLPE power cables power runway lighting, control towers, and terminal buildings as High-voltage XLPE cables ensure uninterrupted power supply in airport infrastructure.
- These cables are also installed in commercial buildings, residential complexes, malls, and hospitals providing safe and efficient power distribution with fire-resistant properties.
- These XLPE Power Cables are used in power server rooms, network infrastructure, and also control centers that ensure stable and reliable power supply for data transmission and connectivity.
